Thin Film Evaporator
Principle
Thin film evaporator is a new type of high-efficiency evaporator that uses a rotating
scraper to force film formation for heat exchange based on the boiling point difference of
each component in the mixture, and quickly separates heat through the heating surface
under vacuum conditions. The material is added to the evaporator from above the heating
zone; The material is distributed to the heating surface of the evaporator through a liquid
distributor, and then the rotating scraper system continuously and uniformly distributes the
material on the heating surface, pushing it downward in a spiral shape. During this process,
the light components are evaporated and form a steam flow that rises. After passing through
the vapor-liquid separator, they are transferred to an external condenser for condensation
and collection; The heavy components are discharged from the bottom of the evaporator.

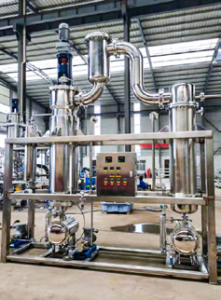

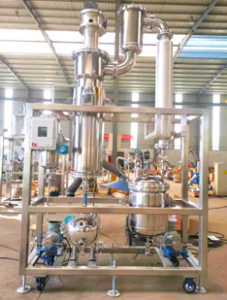

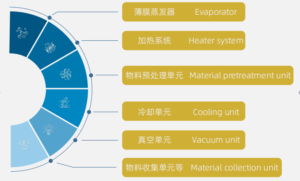

Complete equipment
When selecting, consideration should be given to the physical and chemical properties
and percentages of each component of the separated material, the purity requirements of
each component after separation, and the experience of enterprise process research and
equipment management. Xi’an Newset can produce a complete set of thin film evaporation
equipment according to the process drawings, or cooperate in feasibility research and
process development, design reasonable process parameters based on test results, and
provide turnkey engineering services.
Functional advantages
Low evaporation temperature
High evaporation intensity
Short heating time
High operational flexibility
Industrial applications
Degassing of Pre stage Materials in Short Path Distillation
Reboiler of distillation tower
Concentration of thermosensitive compounds
Online depolymerization of polymers
The recycling and utilization of industrial waste
Removal of toxic substances in the food industry
Decolorization and odor removal of organic compounds
High precision removal of residual solvents in compounds
